| PBX with 1 Trunk Line and 3 Extensions |
 |
| Introduction |
Communication is of importance everywhere, be it a large organization or a small setup.

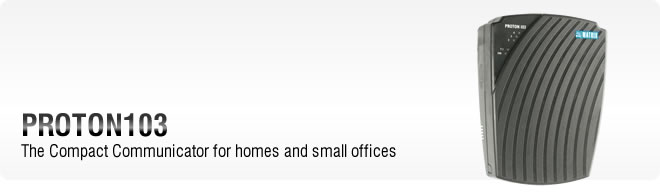

Introducing Matrix PROTON103, a compact PBX loaded with value added features, which reduces cost and enhances productivity. Make the best out of your single trunk line, the ultra-compact micro PBX.
This PBX System supports microcontroller based design and state-of-the-art Surface Mount Technology (SMT) ensuring high reliability and low maintenance cost. Get the power of Matrix PROTON103 in your organization to boost productivity.
Bring that winning difference for your organization by switching to Matrix PROTON103 because only those grow faster who don’t compromise. |
|
| Key Features |
Auto Call Back
Station user need not keep dialing busy station repeatedly. By this feature of PROTON103 you will get connected as it gets free.
Call Pick Up
With this feature of PROTON103, you can answer the call of your colleague from your own desk without physically going to his extension.
Call Splitting
PROTON103 allow you to talk with two persons alternatively by dialing flash only.
Conference
PROTON103 supports 3 party conferences with other extensions or trunks, thus enhancing team work and better communication.
Executive/Secretary
With PROTON103, you can transfer all calls for the boss through secretary. |
|
| Featured List |
| Auto Call Back (Busy,No reply) |
External Call |
| Call Hold |
Flash Timer |
| Call Pick Up (Group,Selective) |
Hotline |
| Call Splitting |
Internal Call |
| Call Transfer |
Interrupt Request |
| Conference (3-Party) |
Last Number Redial |
| Day/Night Modes |
Power Down Mode |
| Distinctive Ringing |
Raid |
| Do Not Disturb |
Round Robin Ringing |
| Executive/Secretary |
Simultaneous Ringing |
|
|
| Technical Specifications |
Configuration
| Total Number of Ports |
4 |
| Number of Trunks |
1 |
| Number of Extensions |
3 |
Power Supply
| Input |
230VAC +/-10%50Hz |
| Power Consumption (Typical) |
10W |
Mechanical
| Dimensions (W×H×D) |
17×23.5×6cm (6.69"×9.25"×2.36") |
| Weight |
2Kg (4.4 lbs) |
Environmental
| Operating Temperature |
0°to 45° |
| Operating Humidity |
95% RH Non Condensing |
|
|
| |
|
